A Digital Layer That Peels Back History

An Augmented Reality Museum Experience Built With Claude Code

Mobile AR

Museum Experience Design

Role: AR Experience Designer & Developer

Team: Solo project

Duration: 3 weeks (2026)

Tools: Claude Code, A-Frame, AR.js, CodePen, GitHub & Figma

01. SITUATION

In a Museum, the Wall Label Is Usually All You Get

A wall label gives a visitor a name, a date, and a few lines of text. Without a guided tour, an audio guide, or a curator beside them, there's no way to go deeper in the moment, standing in front of the work. Curious visitors who want to understand more are left with the surface. And the museum loses a chance to do what it exists to do, to connect people with art and the stories behind it.

This is the gap Overlay / Underlay was designed to close, using one remarkable painting as the case study.

02. CONTEXT

The Painting Hiding Another Painting

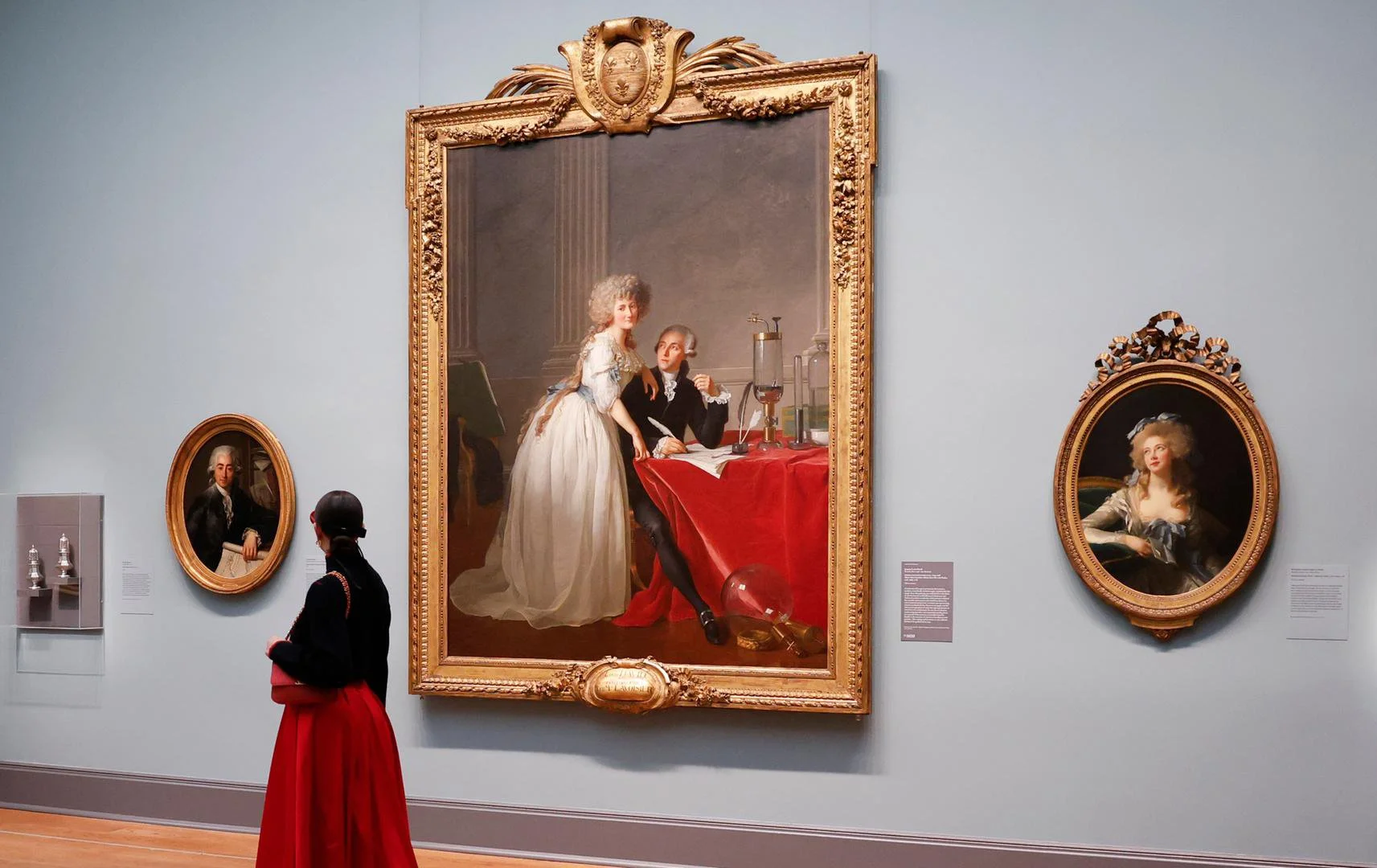

Jacques-Louis David's 1788 portrait of Antoine and Marie Anne Lavoisier hangs in the Metropolitan Museum's European Paintings galleries. In 2021, conservators used advanced imaging to uncover a very different first version beneath the surface, with the couple in far more lavish dress and none of the scientific instruments that define the painting today. The artist made these changes himself, around the time the French Revolution was beginning.

The leading theory is that the Lavoisiers wanted to be seen as modest scientists rather than members of the wealthy tax collector class, a status that was becoming dangerous. Antoine Lavoisier was guillotined in 1794, proof of how real the danger was.

The original composition stayed buried for more than two centuries. These images from the Met Museum reveal the painting’s hidden layer:

Finished painting as seen in the gallery today.

Infrared reflectogram reveals a hat, an ornate table edge, and other hidden forms.

Macro X-ray fluorescence reveals an extravagant hat, a bookshelf, a letter in his hands, and more.

03. QUESTION

Problem Statement

Visitors standing in front of the painting have no idea that a hidden first version lies beneath its surface, a composition that changes the meaning of the entire work. It's one of the Met's most significant recent discoveries, and it's invisible to the very people who came wanting to know more.

How might we…

Give visitors access to that hidden layer, in the moment, standing in front of the painting, without a curator or guide beside them?

04. ANSWER

AR as Metaphor: Using a Digital Layer to Reveal a Hidden Layer

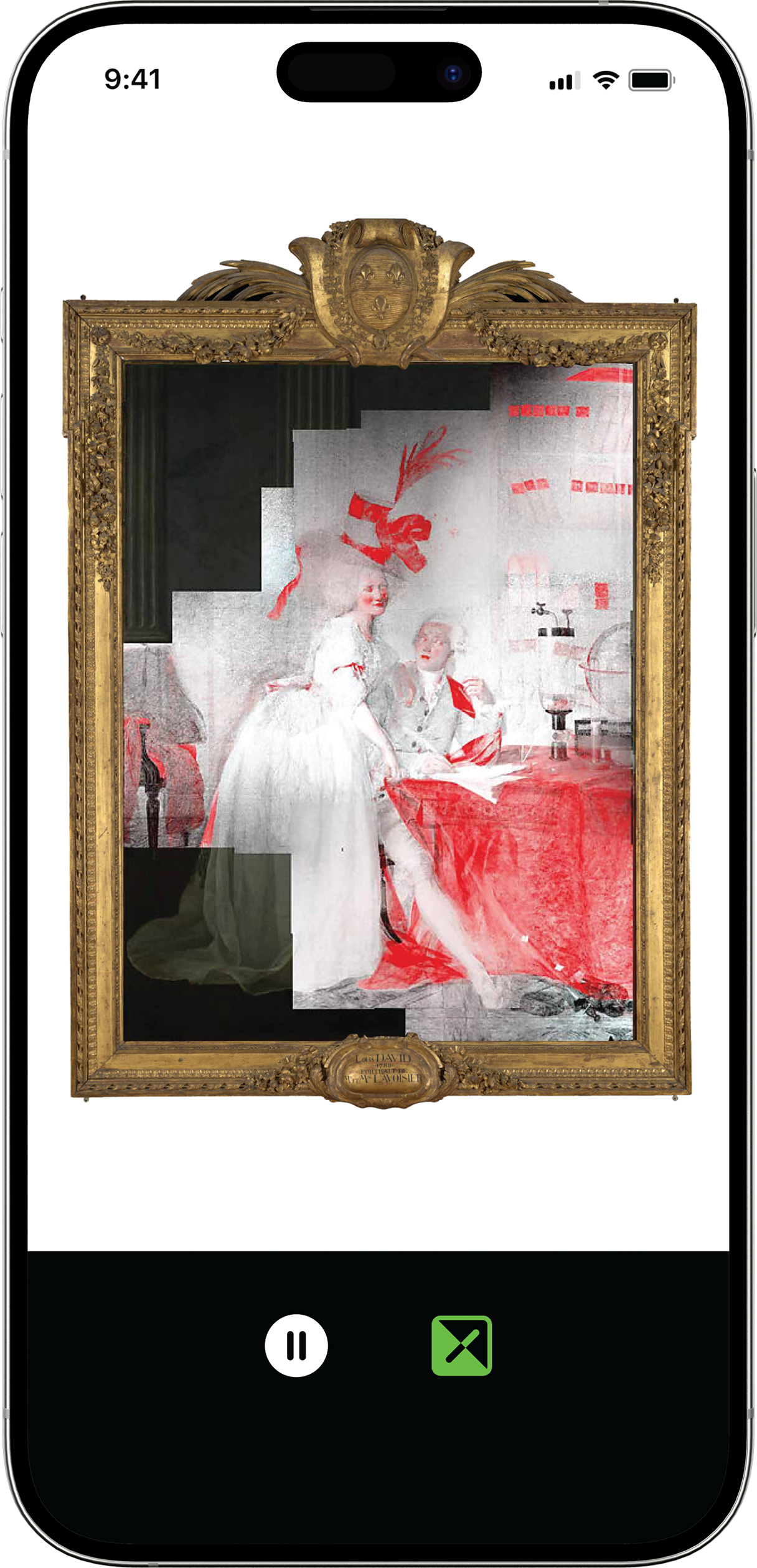

Overlay / Underlay is a marker-based AR experience built with A-Frame and AR.js in CodePen. The user points their phone at a printed marker and taps play. A short audio narration begins, and as it reaches the reveal, an image from the Met's research appears over the painting on their screen, allowing the user to see the hidden layer.

I approached this conceptually. The painting is built from layers, the first version hidden beneath the last. AR adds one more, a digital layer that brings the hidden one back. The medium becomes the metaphor.

05. RESEARCH & DESIGN PROCESS

Defining the User: Different Visitors, One Experience

Met visitors range widely in age, background, and interest in art. To design for that range, I kept the experience simple enough for anyone and focused on two visitors who pull it in opposite directions.

Based on interviews with five regular Met visitors, two clear archetypes emerged:

From Sketch to Working Interface

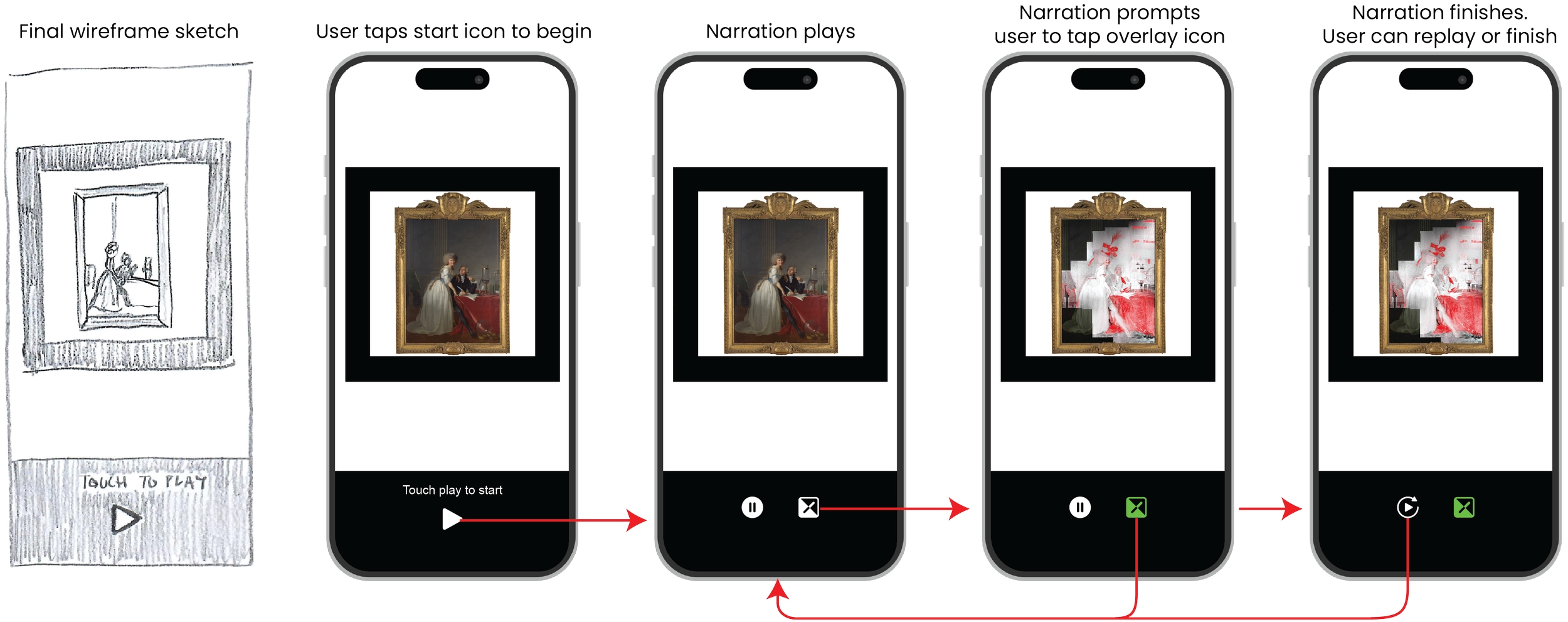

I sketched and refined the flow through multiple wireframe iterations before adding any AR, so the interactions were solid before AR added complexity on top. The final UI strips down to a minimal icon bar at the bottom, leaving most of the screen for the painting. Text buttons became simple icons, and the overlay icon turns green when active, the only color signal in the interface.

06. DEVELOPMENT

I coded the project with Claude. Overlay / Underlay runs entirely in the browser, with no app to install. It's built with A-Frame (a 3D and AR framework on top of three.js) and AR.js for tracking, prototyped in CodePen with assets hosted on GitHub. HTML, CSS, and JavaScript throughout.

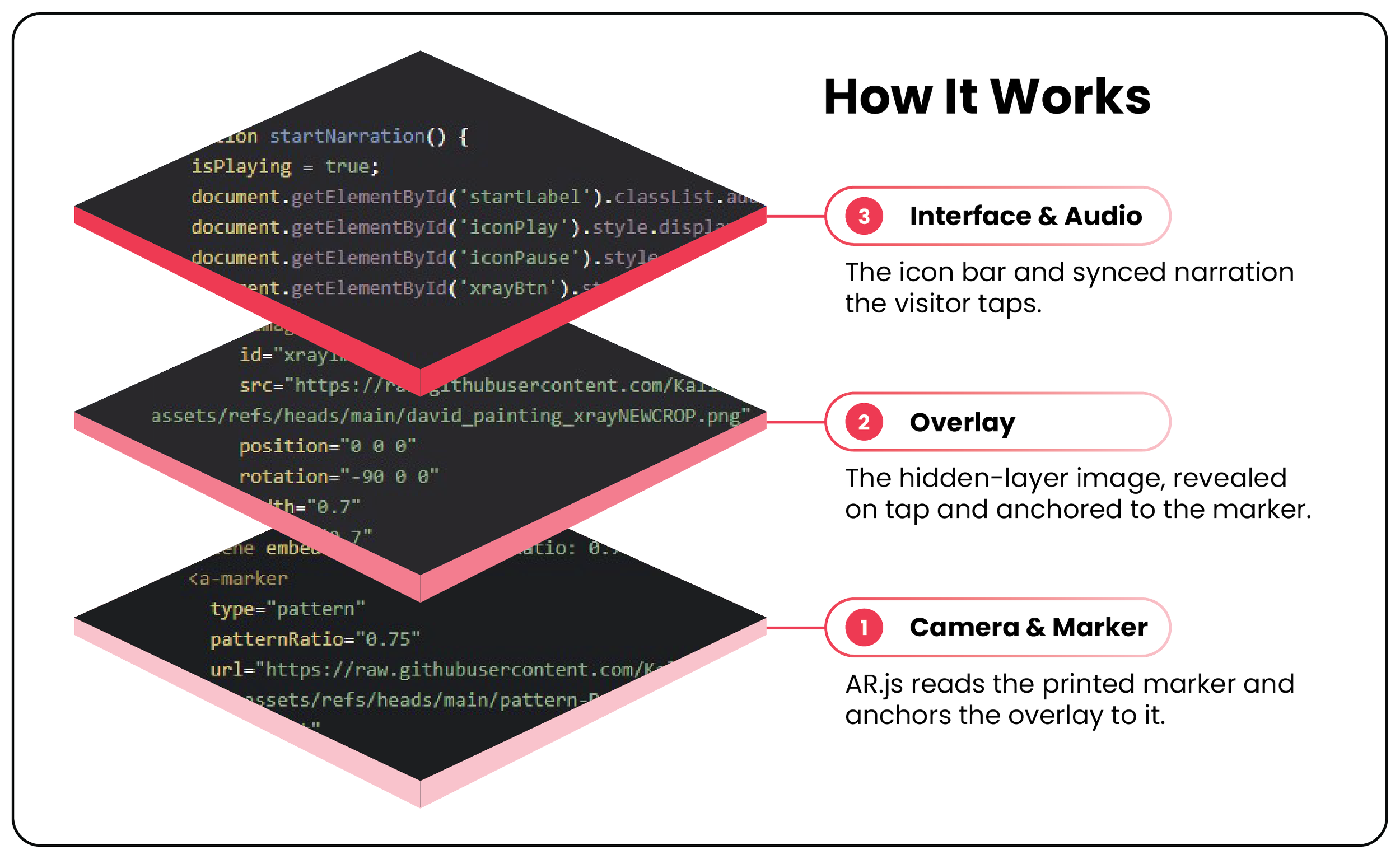

Fittingly for a project about layers, the build comes together as three layers: the camera and marker that anchor everything, the overlay that holds the hidden image, and the interface and audio the visitor actually touches.
